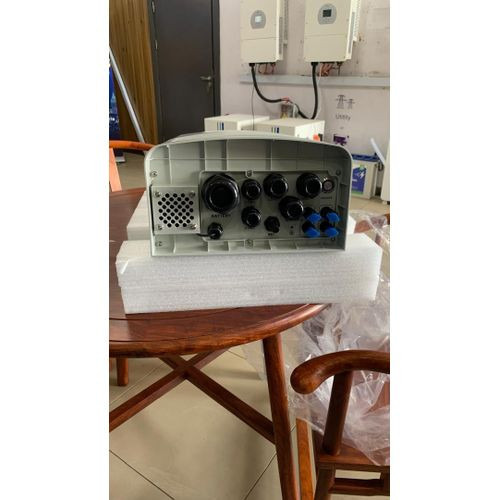

Deye 3.6kw Single Phase Off-grid hybrid Inverter system

The series, SUN-3.6/5/6k-OG01LP1-EU-AM2, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. Max. parallel units are up to 16 PCs.

Battery Voltage Range 40-60

Max. charging current 135

max discharge current 135

Number of battery input 1

Max pv access power 12000

Max pv input power 9600

Max pv input voltage 500

Start up voltage 125

MPPT voltage range 150-425

Rated pv input voltage 370

Max operating pv input current 18+18

Max input short circuit current 27+27

N0. of strings MPP Trackers 2/1+1

Rated AC input/output active power 6000

Max AC input/output apparent power 6000

Rated ac input/output current 27.3/26.1

Max. ac input/output current 27.3/26.1

Grid to load 35

Total PV input in watts 7.2kwp

DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
